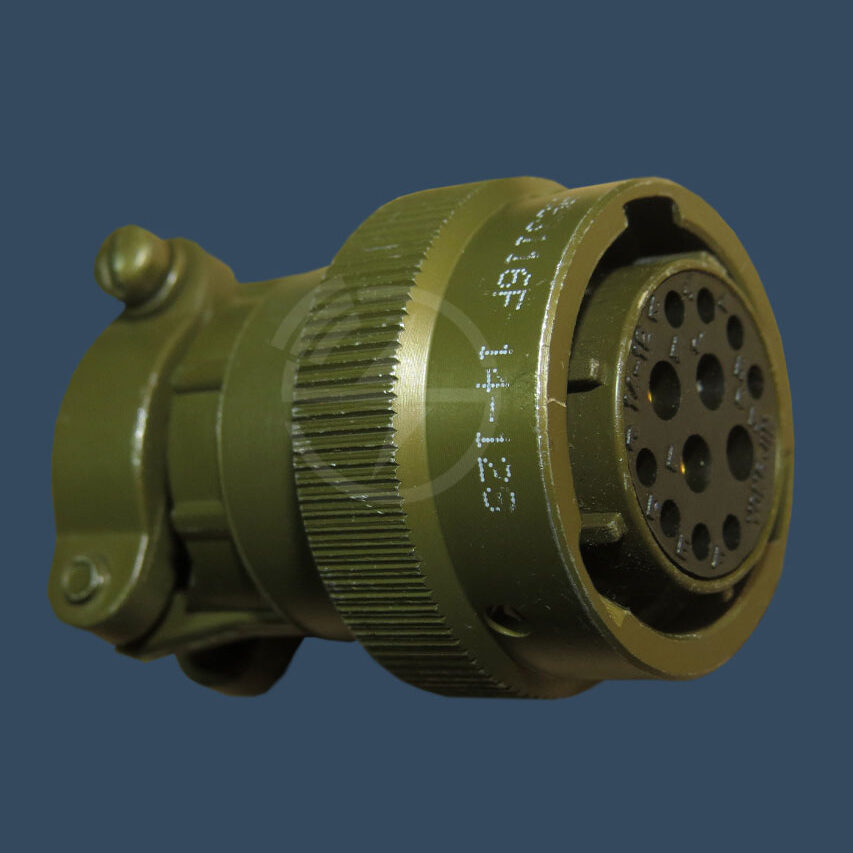

MS3116F 14-12S
SKU : MS3116F 14-12S
- High-performance connector with high-density contact arrangement in a compact body
- By adopting the Bayonet coupling method, the assembly work is very quick and simple.
- It has environmental resistance characteristics that can survive under extreme conditions of use.
- When connecting with gold-plated conductors and wires, soldering method is adopted
- Various insulator arrangement and conductor standard (#20 to #12) provided
Main |
Detail |
Size |
14
|
Contact type |
female
|
number of contact |
8+4
|
body shape |
Straight Plug
|
Termination |
solder
|
Locking |
Bayonet
|
Degree of protection |
IP67
|
Current |
7.5A,13A
|
contact plating |
copper alloy
|
-
